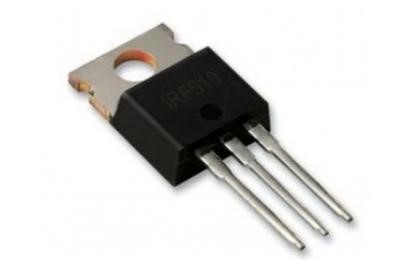

IRF510 MOSFET Introduction

IRF510, an N-channel Power MOSFET, has the best combination of quick switching and low resistance to on-state. The component is offered at a cheaper price. This is why it is extensively utilized in industrial applications for power dissipation that go up to 43W.

It can withstand drain to source voltage VDS up to 100V and continuous drain current ID of up to 5.6A. It is part of the package TO-220AB and can withstand 20A in pulse mode. This device is ideal for high-speed switching applications such as motor drivers, regulators, and switching converters.

Today, easybom will introduce the details about it. This article will be divided into below parts: IRF510 DatasheetIRF510 PinoutIRF510 CircuitIRF510 Equivalent, and so on.

Features of IRF510 MOSFET

Dynamic dv/dt rating

Single-pulse avalanche rated

High input impedance

Linear transfer characteristic

High-speed switching speed (in terms of nano-second)

Ease of paralleling

Operating temperature up to 175˚C

Low thermal resistance

IRF510 Pinout

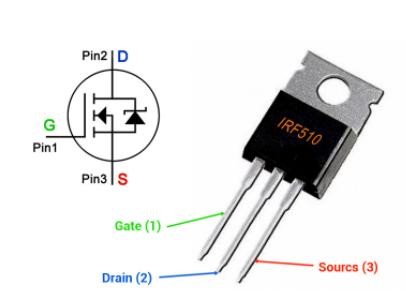

Below is the IRF510 Pinout:

IRF510 Specifications

Supply Chain

Factory Lead Time – 8 Weeks

Physical

Number of Pins – 3

Technical

Operating Temperature –  -55°C~175°C TJ

IRF510 Circuit

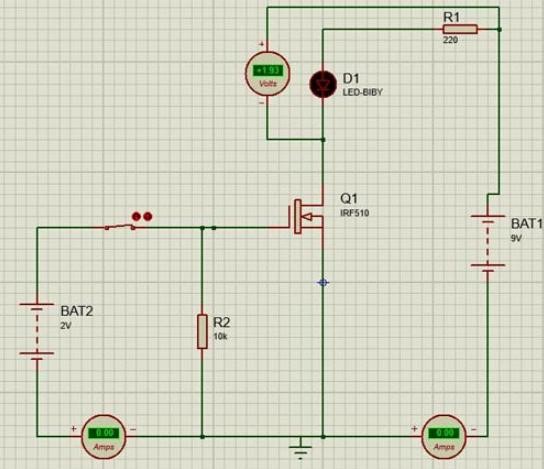

Below is the IRF510 circuit:

Where to Use IRF510 MOSFET?

The IRF510 MOSFET is general use and is suitable for the application of battery charger and management system, motor driver circuits, telecommunication and computer applications, solar UPS, fast switching applications, and as well as switching converter and regulators.

IRF510 Equivalent

You could use IRF512, IRF120, IRF522, IRF520, IRF634, IRF532 as IRF510 equivalent. You could find them on easybom.

How to Use IRF510?

The MOSFET is a switch device that turns on when enough gate voltage is available. Otherwise, it will stay on turn-off. This simulation will show how IRF510 turns on an LED. The current won’t pass from drain to source if the gate voltage applied is insufficient to turn on the device. The LED will turn on when the gate voltage is high enough to turn ON MOSFET.

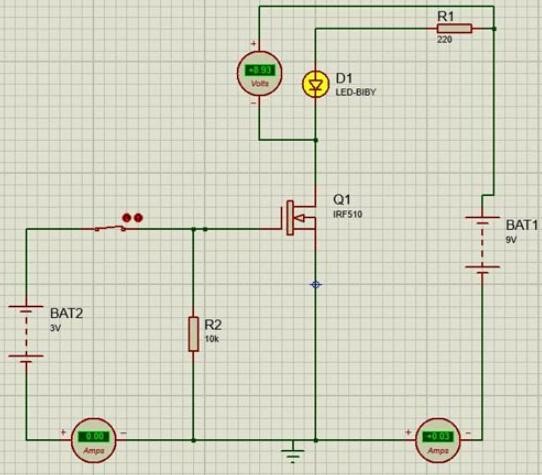

Below is the IRF510 circuit:

Everything You Need to Know About IRF510 MOSFET in Electronics

What is IRF510?

IRF510, an N-channel Power MOSFET, has the best combination of quick switching and low resistance to on-state. The component is offered at a cheaper price. This is why it is extensively utilized in industrial applications for power dissipation that go up to 43W.



What is N channel MOSFET?

N-Channel MOSFET, a type of field-effect metal oxide semiconductor transistor, is classified under the field effect transistors (FET). The capacitor is the basis of MOSFET transistor operation. This transistor is also known by the insulated-gate-effect transistor (IGFET).

What is P channel MOSFET?

P-Channel MOSFET refers to a class of Metal Oxide Semiconductor device. This is the n-substrate with light doping concentration. These are the terminals devices. Because it is dependent on the majority charge carriers, it has unipolar characteristics.

IRF510 MOSFET Applications

UPS (Uninterruptable Power Supply)

Battery charger and management system

Motor driver circuit

Telecommunication and computer applications

Solar UPS

Fast switching applications

Switching converter and regulators

Package Dimensions

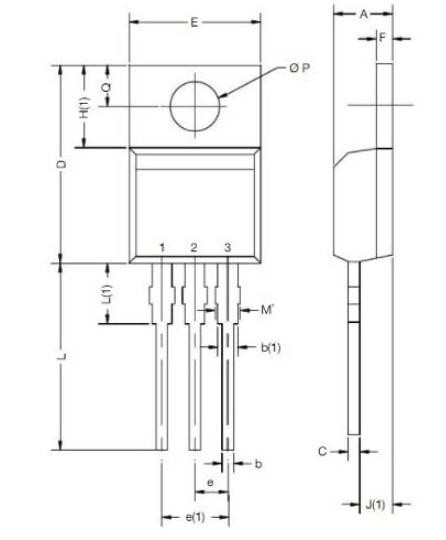

Below is the picture of 2D Model and Dimensions from the IRF510 Datasheet will be useful to know the package type and dimensions.

IRF510 Datasheet

Download the IRF510 datasheet below:

Manufacturer

Vishay / Siliconix

Vishay, an important partner of Digi-Key, serves as a globally recognized manufacturer famous for their discrete semiconductors and passive electronic components. Their discrete semiconductors include diodes, MOSFETs, optoelectronics, etc and their passive components include resistors, inductors, capacitors, etc. These products are widely used for almost all kinds of electronic devices and equipment in the fields of industrial, computing, automotive, telecommunications, military, aerospace, and medical.

Conclusion

In short, IRF510 MOSFET has the best combination of quick switching and low resistance to on-state. The component is offered at a cheaper price. This is why it is extensively utilized in industrial applications for power dissipation that go up to 43W. It is suitable for the application of battery charger and management system, motor driver circuit, telecommunication and computer applications, solar UPS, fast switching applications, and as well as switching converter and regulators. Hope the above information could help you !
